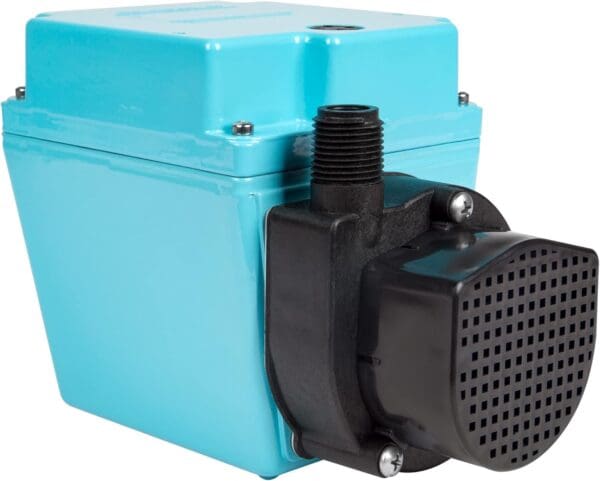

Blue electric water pump with black connector.

Submersible Pump

$250.25

3E-12N Series, Submersible or In-line oil-filled 500 GPH Pump, 115V, 60HZ 6′ cord, 3.2 A, 15V AC, 1/15 hp, 16.8 ft Max Head, 1/2 in, 1/2 in Intake and Discharge

Category: Brand: ,

Description

Pump Specs

HP 1/15 hp
Voltage 115V
Full Load Amps 3.2 A
Impeller Material Nylon
Duty Continuous
Max. Head 17.3 ft
Seal Material Fluoroelastomer
GPH of Water @ 5 Ft. of Head 337
Overload Protection yes
Features In-line or Submersible
GPH of Water @ 1 Ft. of Head 500
Outlet 1/2 in (M)NPT
Agency Compliance UL
Housing Material Nylon
Hz 60
GPH of Water @ 10 Ft. of Head 210
Inlet 1/2 in (F)NPT
Inlet Type 1/2 in (F)NPT
Amps 3.2 A
Standards cCSAus Listed
Horsepower 1/15 hp
Duty Cycle Continuous
Maximum Media Temperature 120 Degrees F
Thermal Overload Protection Yes
Compatible with Media Type Oil
Pumping Application Air Conditioners, Machine Tool Coolants, Mild Acids, Recirculation, Submersible, Water Displays, Water Transfer
Flow Rate @ 15 ft of Head (Maximum) 50 gph
Maximum Flow Rate 500 gph
Pump Housing Material Cast Aluminum
Discharge Type NPT
Flow Rate @ 1 ft of Head (Maximum) 500 gph
Maximum Feet of Head 16.8 ft
Intake Type NPT
Flow Rate @ 10 ft of Head (Maximum) 210 gph
Nameplate Voltage 115V AC
Minimum Flow Rate 0 gph
Flow Rate @ 5 ft of Head (Maximum) 337 gph
Seal Type Mechanical
Motor Sealing Oil-Filled
Series 3E-12N
Frequency 60 Hz
Feet of Head (Minimum) 1 ft
