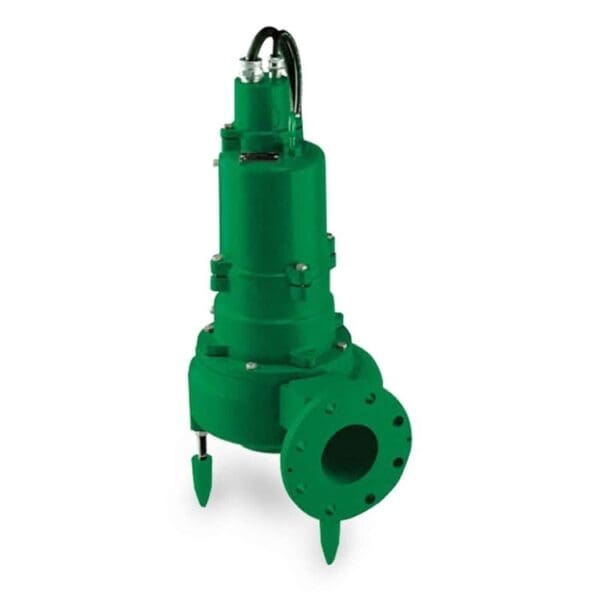

Pentair Myers 4WHV75M4-23 4inch, 7.5HP, Solids Handling Wastewater Pump
$7,850.00
Pump: 4WHV75M4-23, Solids handling pumps 7.5 HP 230 volt 3 phase Horizontal orientation with Flanged discharge connection.
MN: 4WHV75M4-23
PN:24400E021
Description
Pump Specs
- Rated Flow: 250 USgpm
- Rated Head: 40 Ft
- Impeller Trim: 7.3750 inches – based on curve data
- Selected Hertz: 60
- Speed Rated: 1750 RPM
- Motor size: 5.59 kW / 7.50 hp
- Seal Type: Dual
- Motor voltage / phase: 230/3
- Oil type: Dielectric transformer
- Horizontal or vertical discharge: Horizontal discharge
- Flanged or threaded connection: Flanged discharge
- Single / Dual seal options: Dual Mechanical seal
- Upper seal material – elastomer: Tungsten carbide –Nitrile
- Lower seal material – elastomer: Tungsten carbide –Nitrile
- Cord length and gauge: Standard 8-4 Cord, 35 ft
Pump Documents
Additional information
| Weight | 250 lbs |
|---|
